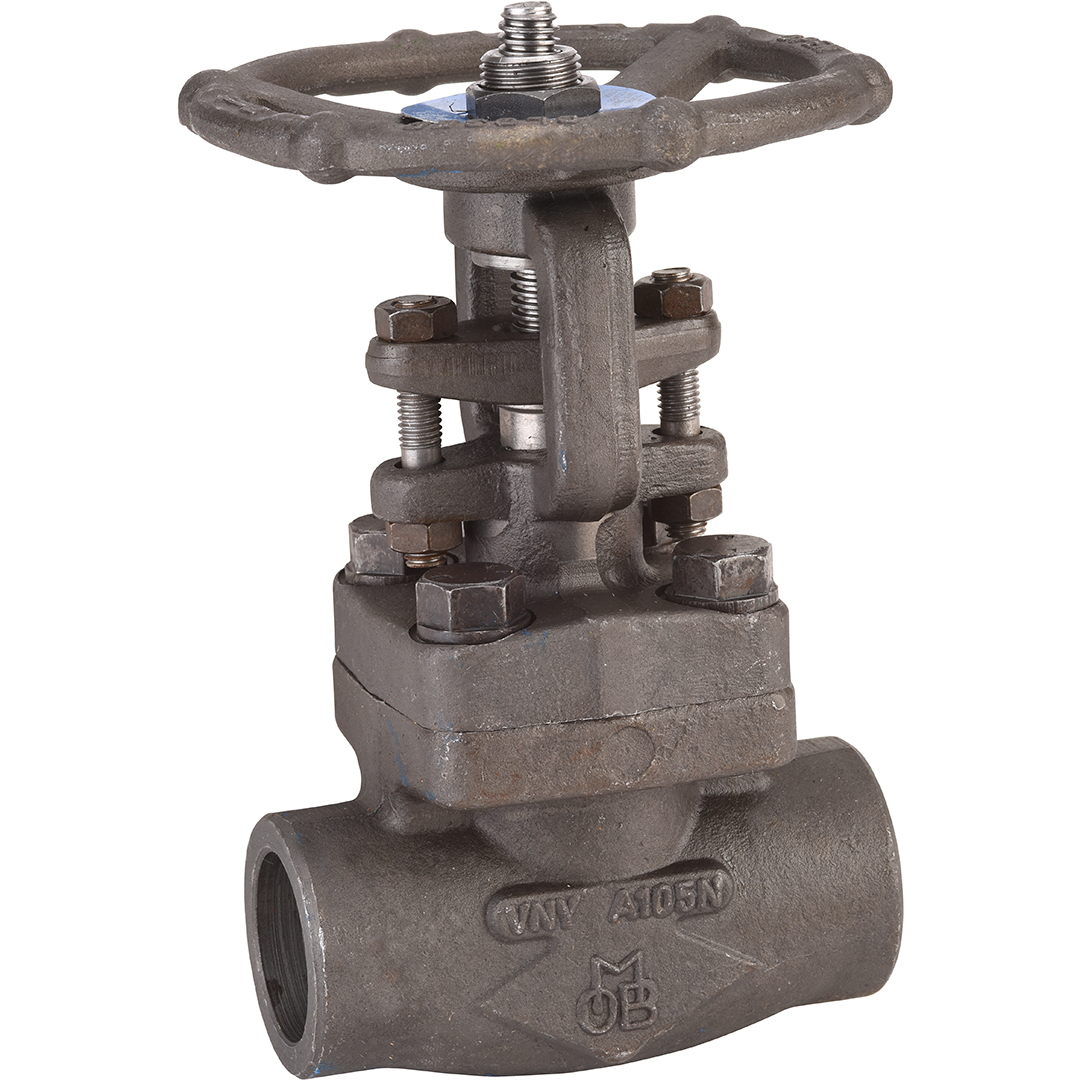

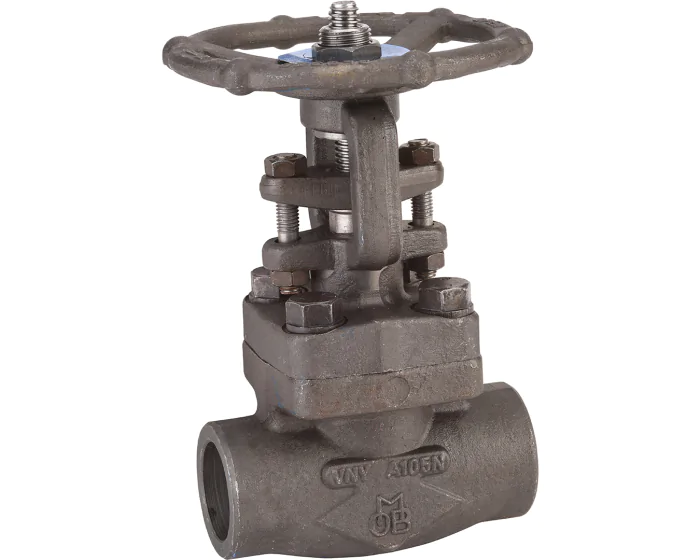

The 121 series gate valve, in forged steel A350LF2, welding SW, Class 1500, standard bore, TRIM12 for oil, steam and high pressure industries.
| Specification | Value |
|---|---|
| DN inches NPS | 1/2'' |
| Option certificate 3.1 | Yes |
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 12 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| DN | DN15 - 1/2'' |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Hydrocarbons. gas |
| Kv (m³/h) | 4.8 |
| Body material | Carbon steel ASTM A350 LF2 |
| Gate material | Stainless steel ASTM A182 316/316L |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 255 |
| Connections | Welding SW |
| Seats | Stainless steel ASTM A479 316 + Stellite Gr |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
If you have any questions about this product, please feel free to contact us.
| Product Name | Product Number | EVAC Number | Price | Add to Cart |
|---|---|---|---|---|
| Welding SW Carbon steel ASTM A350 LF2 Standard DN15 - 1/2'' | 121015 | S1007494 |
€73.41
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN20 - 3/4'' | 121020 | S1007495 |
€97.46
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN25 - 1'' | 121025 | S1007496 |
€184.89
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN40 - 1''1/2 | 121040 | S1007497 |
€319.50
(excl. btw)
|
add to cart |
| Welding SW Carbon steel ASTM A350 LF2 Standard DN50 - 2'' | 121050 | S1007498 |
€583.26
(excl. btw)
|
add to cart |
